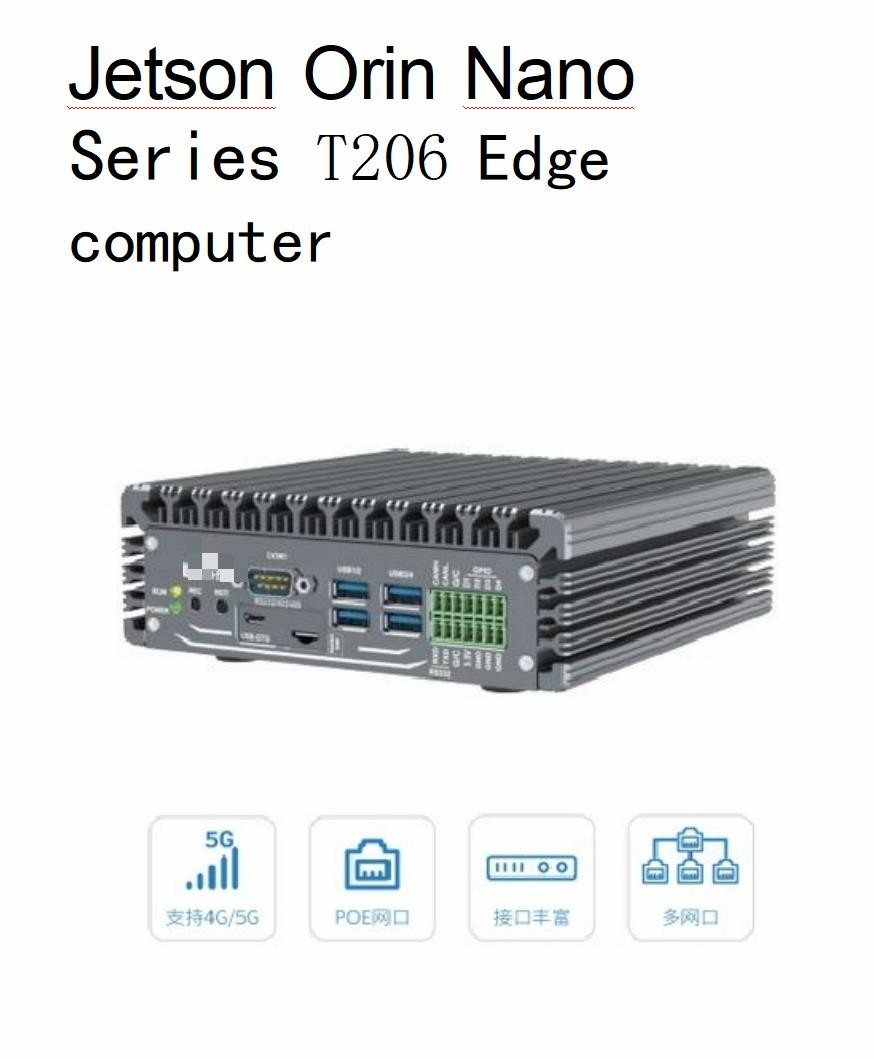

NVIDIA Jetson Orin Nano Series T206 Edge computer

systems

Al Platform

Jetson Orin Nano

AI computing power

20 TOPS/40 TOPS (Super Mode：34TOPS/67TOPS)

GPU

512-core NVIDIAAmpere architecture GPU with 16 Tensor Cores/ 1024-core NVIDIAAmpere architecture GPU with 32 Tensor Cores

CPU

6-core ArmCortex®-A78AE v8.264-bit CPU 1.5MBL2+4MB L3

video encoding

1080p30 supported by 1-2CPU cores

video decoding

1x4K60(H.265)2x4K30(H.265)

5x1080p60(H.265)11x1080p30(H.265)

RAM

4GB64-bit LPDDR534 GB/s 8GB 128-bit LPDDR568 GB/s

Storage/Expansion

(Supports external NVMe)

wired network

Interface

5 x RJ45 Gigabit Ethernet ports. Lan1 has an independent IP address, and Lan2-Lan4 share an IP address and support POE (at standard).

wireless network

WIFI

2.4GHz/5GHz dual-band WiFi (optional)

4G/5G

4G full-network connectivity/5G full-network connectivity (optional)

GNSS

Supports multi-mode (BeiDou, GPS), and supports meter-level/centimeter-level/RTK/inertial navigation (optional) (To use the RTK function, an RTK antenna needs to be selected).

Others

1x SIM  Card

multimedia

demonstrate

1xHDM

audio frequency

/

I/O

USB

4xUSB3.0 Type-A,1xUSB2.0 Micro OTG

serial port

1xRS232,1xRS232/RS485

CAN

1xCAN,1xSPI-CAN(optional)

Multi-function interface

4xGPIO(3.3V@1mA)1xl2C(3.3V)

Interface

M.2 KEY E

1

M.2 KEY M

1x2280 PCIE SSD

Others

RTC

1xRTC

synchronization system

/

GMSL Camera Interface

/

Others

Power Input

Input voltage: 12-24V, supporting backup power supply (optional)

Power connector

MX3.0 terminal

Buttons/Indicators

Recover\Rest Two buttons and two indicator lights

physical parameter

Specification/Size

165mm×163.3mm×53mm

setting

operating temperature

-20℃ to 60℃

Operating humidity

5%~95%,without condensation

Heat dissipation method

Passive heat dissipation
