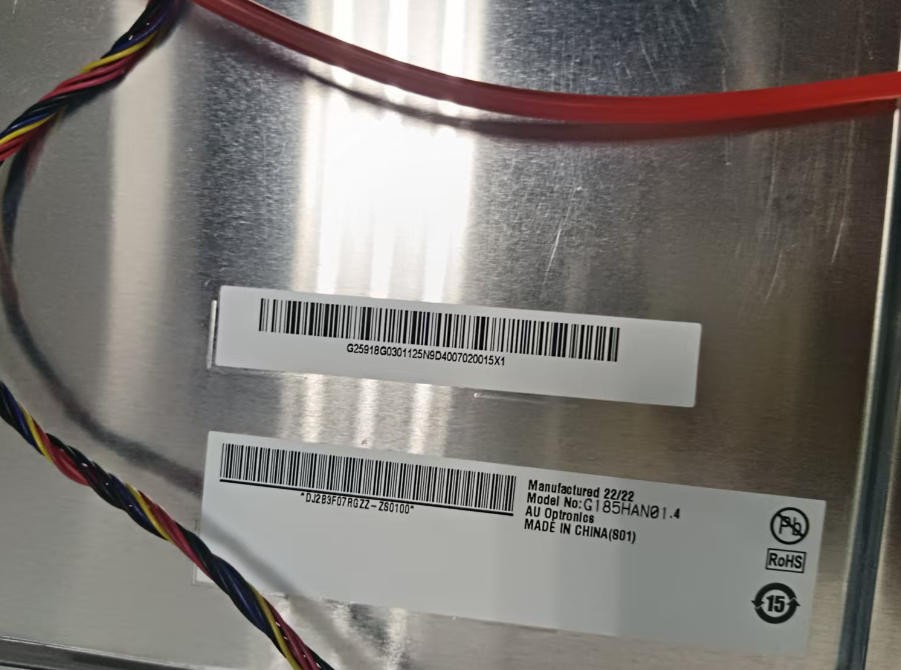

AUO 18.5 inch TFT-LCD display panel G185HAN01.4

Structure Details of AUO LCD Module G185HAN01.4

Pixel features: Resolution 1920 (RGB) × 1080, FHD pixel pitch (mm) 0.071 × 0.213 (H × V), Pixel arrangement RGB vertical stripe

LCR Vertical Stripe: Left-center-right vertical stripe

Rectangle: Square

RGB Delta: Red-green-blue triangular

RGB Horizontal Stripe: Red-green-blue horizontal stripe

RGB Vertical Stripe: Red-green-blue vertical stripe

RGBW Rectangle: Red-green-blue-white square

RG/BW PenTile: (Red-green)(Blue-white) vertical stripe

RG/BG PenTile: (Red-green)(Blue-green) vertical stripe

RGBY Vertical Stripe: Red-green-blue-yellow vertical stripe, Pixel pitch (mm) 0.213 × 0.213 (H × V) [119 PPI]

Structural dimensions: Display area (mm) 408.96(H) × 230.04(V) Open area (mm) 412.56(H) × 233.64(V) External dimensions (mm) 429.3(H) × 253.06(V) External thickness (mm) 8.03/11.83 (Typ./Max.)

Appearance Features: Physical Shape Flat Rectangular Appearance Style - Aspect Ratio 16:9 (H:V) Landscape Portrait Landscape Mode

Installation method: Side mounting holes (4-M3) on left and right bezels

Other parameters: Weight 1.60Kgs (Typ.) Surface treatment: Matte, Hard coating (3H), Anti-reflective treatment

Basic Information:

Display Brightness: 1800 cd/m² (Typ.)

Contrast Ratio: 1000:1 (Typ.) (Transmissive)

Viewing Angle: Left/Right/Up/Down 89/89/89/89 (Typ.) (CR≥10)

Display Mode: AHVA, Normally Black Display, Transmissive

Recommended Viewing Angle: Full View

Response Time: 10/10 (Typ.) (Tr/Td) ms

Color Performance: White coordinates Wx: 0.299; Wy: 0.315  Supported colors: 16.7M (8-bit)  Color temperature: 7502K  Brightness uniformity: 1.18/1.25 (Typ./Max.) (9 points)  Brightness uniformity = Maximum / Minimum

1931 Color Gamut: NTSC Ratio 73%, sRGB Coverage 99%, Adobe RGB Coverage 76%, DCI-P3 Coverage 76%, Rec.2020 Coverage 55%, Low Blue Light Eye Protection
